Product Description

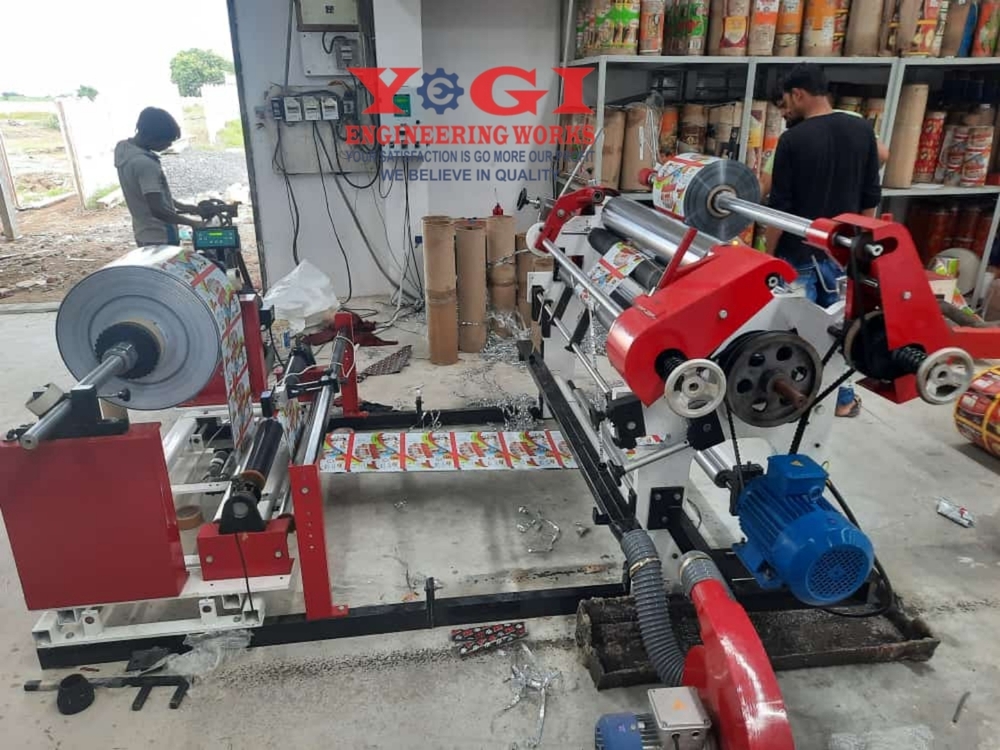

Drum Type, Center Shaft Type, Surface Type-Slitting Rewinding Machine
Flexible & Packaging Industries all material use our Slitting Rewinding Machine.
Material will be Process:Paper, Fabric, Film, Plastic, , HDPE, LD, PP, Film, BOPP-Polyester Film, Stretch Film, Cling Film, PVC Film, All type Fabric, Non-Woven Fabric, Pouch, Foil, Aluminum Foil, Pharma Foil, Bister Foil, Craft Paper, Paper Cup, Thermal Paper, Bister Paper, Foil Paper, Butter Paper, Laminated Paper, Rubber etc.
- MS Plate Heavy Duty Machine Structure
- Roll Width: 500mm to 2500mm Standard
- Motor 3 HP to 15 HP A.C. Motor
- Control Panel 3 HP to 15 HP A.C. Digital frequency Drive
- (Penal Section we provide you Auto Start and Stop Button, Length Counting meter, Speed Adjustable-Sensor, Emergency Stop.)
- Our Machine Easily Operating System
- Mechanical Shaft Unwinder/Rewinder side Chuck-Nut-Bearing use
- Jumbo Roll Weight Capacity Upto 1000Kg
- Slitting System with Cutter Assembly
- Unwinder/Rewinder Roll Dia Mtr Upto 1000mm
- Mechanical Break System for Tension Unwinder Jumbo Roll
- Rewinding Side Clutch System
- Web (Edge) Guide System-Hydraulic-(This machine so that you can take proper rewinding and finishing for Your Roll.)
- Blower for Trimming Arrangement
- All Side Vertical Covered from M.S. Sheet
- Heavy Duty Chain Drive System
- Rewinding Speed: 150 MPM.
- Weight of Machine 2000 Kg Approx.
- Machine Available: Three Phase
Optional Items Available
- Air Shaft-Unwinder & Rewinder Side
- Heavy Duty Taming Belt System
- Electrical Web (Edge) Guide & Line Guide System
- Pneumatic Break-Semi Automatic Break System
- Auto Tension Control System-Automatic Break System
- High Speed Require so Available 3 Drive/4 Drive System-300 MPM High Speed
