Paper Tape Cutting Machine

Product Description

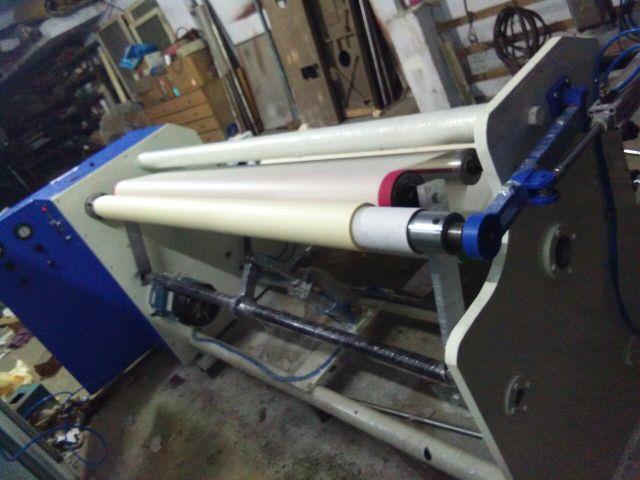

Abro-Masking Tape Rewinding Machine-Automatic

MS Plate Heavy Duty Machine Structure
Maximum Roll Width: 1650mm Standard
Material will be Process Abro Masking Tape, Paper Tape, Surgical Tape, Double SideTape, Foam Tape etc.
Motor 5 HP A.C. Motor
Control Panel 5 HP A.C. Digital frequency Drive
(Penal Section weprovide you Auto Start and Stop Button, Length Counting meter, Speedadjustable-Sensor.)
Mechanical Shaft Unwinder side Chuck-Nut-Bearing use
Jumbo Roll Capacity 250 Kg
Mechanical Break System for Tension Unwinder Jumbo Roll
Rewinding Side Air Shaft
Rewinding Roll-Paper Core loading and unloading-Easily Operating System
Automatic System for Rewinding Air Shaft
One Side Vertical Covered from M.S. Sheet
Heavy Duty Chain Drive System
Rewinding Speed: 100 MPM.
Weight of Machine 1000 Kg Approx.
Machine Available: Three Phase

Abro-Masking Tape & PVC Installation Electrical Tape Slicer Machine

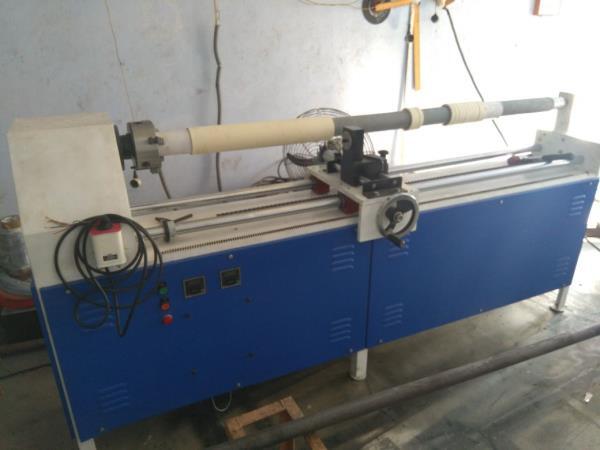

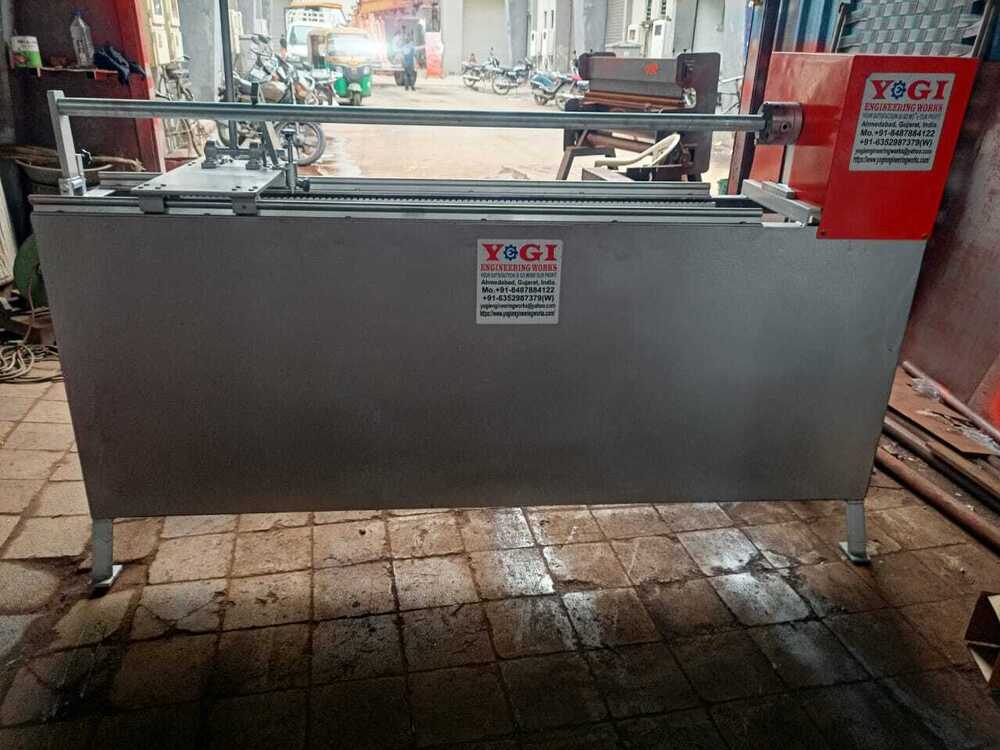

Tape Cutting (Slicer) Machine
Heavy Duty Machine Structure
Maximum Web width: 1350mm & 1650mm Standard
Material will be Process PVC Insulation Electrical Tape, Abro Masking Tape, PaperTape, Surgical Tape, Double Side Tape, Foam Tape etc.
Motor 2 HP A.C. Motor
PP Make Shaft & MS Shaft with Chrome
76mm Id & 38mm Id etc.
Chuck Heavy Lock for Shaft
Chuck-Nut-Bearing use Better finishing, assembly of V Belt & Pulley
All Side Vertical Covered from M.S. Sheet
1 No. Blade Cutter with Vertical Covered from M.S. Sheet
1 No. On/Off Switch
Hand Operated-Pneumatic-PLC Base Fully Automatic All Model Available
Weight of Machine 300 Kg Approx.
Machine Available: Single/ Three Phase
