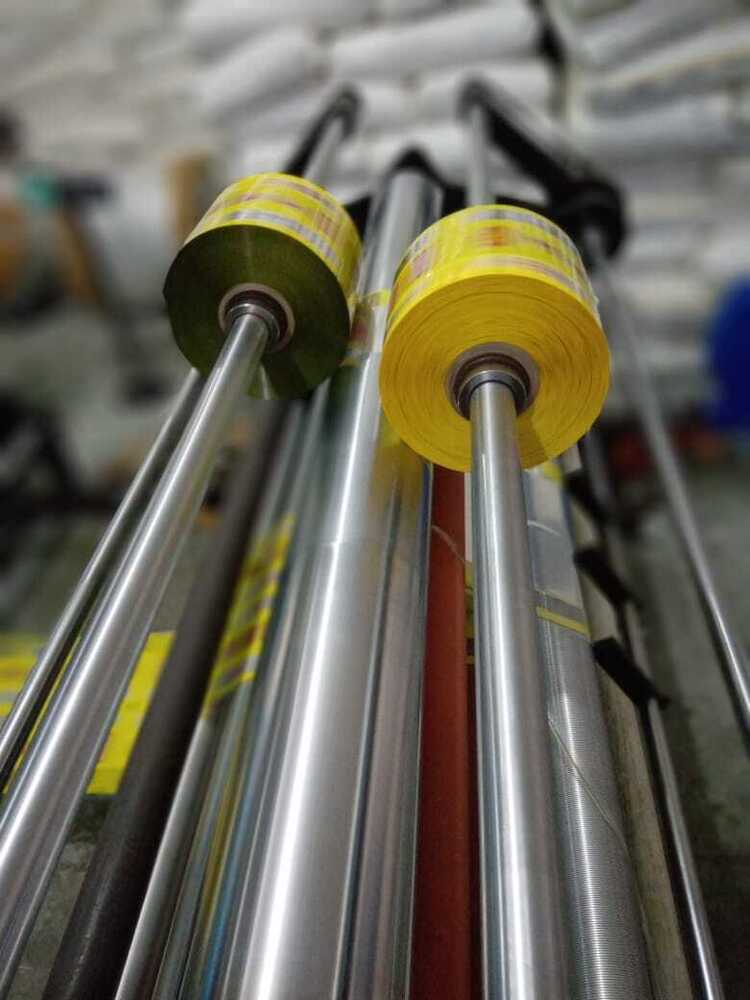

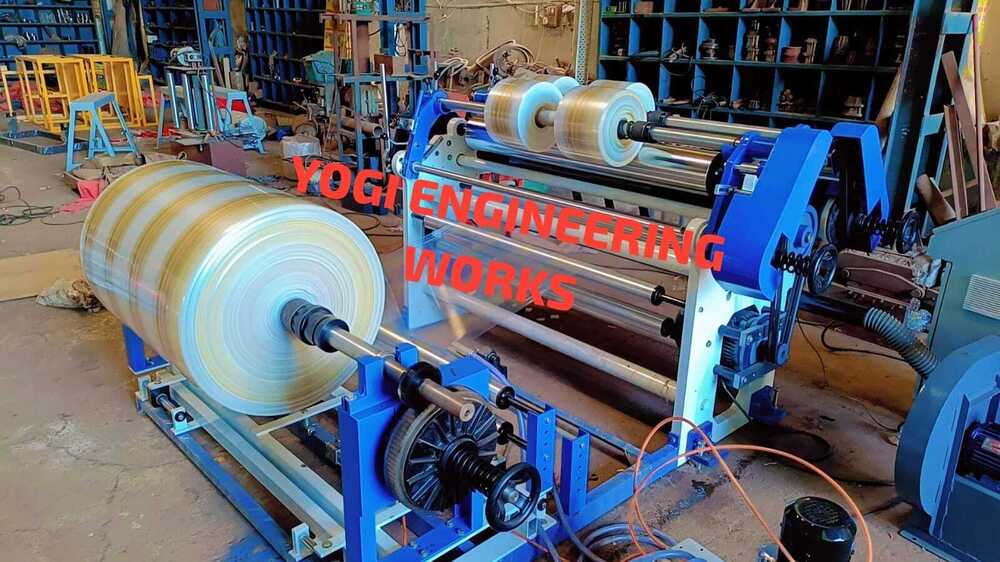

Plastic Film Slitter Rewinder Machine

Product Description

Drum Type, Center Shaft Type, Surface Type-Slitting Rewinding Machine
Flexible & Packaging Industries all material use our Slitting Rewinding Machine.
Material will be Process:Paper, Fabric, Film, Plastic, , HDPE, LD, PP, Film, BOPP-Polyester Film, Stretch Film, Cling Film, PVC Film, All type Fabric, Non-Woven Fabric, Pouch, Foil, Aluminum Foil, Pharma Foil, Bister Foil, Craft Paper, Paper Cup, Thermal Paper, Bister Paper, Foil Paper, Butter Paper, Laminated Paper, Rubber etc.
MS Plate Heavy Duty Machine Structure
Roll Width: 500mm to 2500mm Standard
Motor 3 HP to 15 HP A.C. Motor
Control Panel 3 HP to 15 HP A.C. Digital frequency Drive
(Penal Section we provide you Auto Start and Stop Button, Length Counting meter, Speed Adjustable-Sensor, Emergency Stop.)
Our Machine Easily Operating System
Mechanical Shaft Unwinder/Rewinder side Chuck-Nut-Bearing use
Jumbo Roll Weight Capacity Upto 1000Kg
Slitting System with Cutter Assembly
Unwinder/Rewinder Roll Dia Mtr Upto 1000mm
Mechanical Break System for Tension Unwinder Jumbo Roll
Rewinding Side Clutch System
Web (Edge) Guide System-Hydraulic-(This machine so that you can take proper rewinding and finishing for Your Roll.)
Blower for Trimming Arrangement
All Side Vertical Covered from M.S. Sheet
Heavy Duty Chain Drive System
Rewinding Speed: 150 MPM.
Weight of Machine 2000 Kg Approx.
Machine Available: Three Phase

Optional Items Available

Air Shaft-Unwinder & Rewinder Side
Heavy Duty Taming Belt System
Electrical Web (Edge) Guide & Line Guide System
Pneumatic Break-Semi Automatic Break System
Auto Tension Control System-Automatic Break System
High Speed Require so Available 3 Drive/4 Drive System-300 MPM High Speed
